Front-end¶

Learn about the Cosmo Tech web application interface and how to create datasets and scenarios to run simulations.

The Cosmo Tech web application provides an intuitive interface for: - Creating and managing datasets. - Configuring and running scenarios. - Monitoring simulation execution. - Visualizing results through Power BI dashboards.

This guide walks you through the essential steps to get started with your first simulation.

Creating a dataset¶

Datasets contain the input data that your scenarios will use for simulations. Before running any scenario, you need to create at least one dataset.

Step 1: Navigate to the Dataset view¶

When you first access a workspace with no datasets, you'll see an empty dataset view.

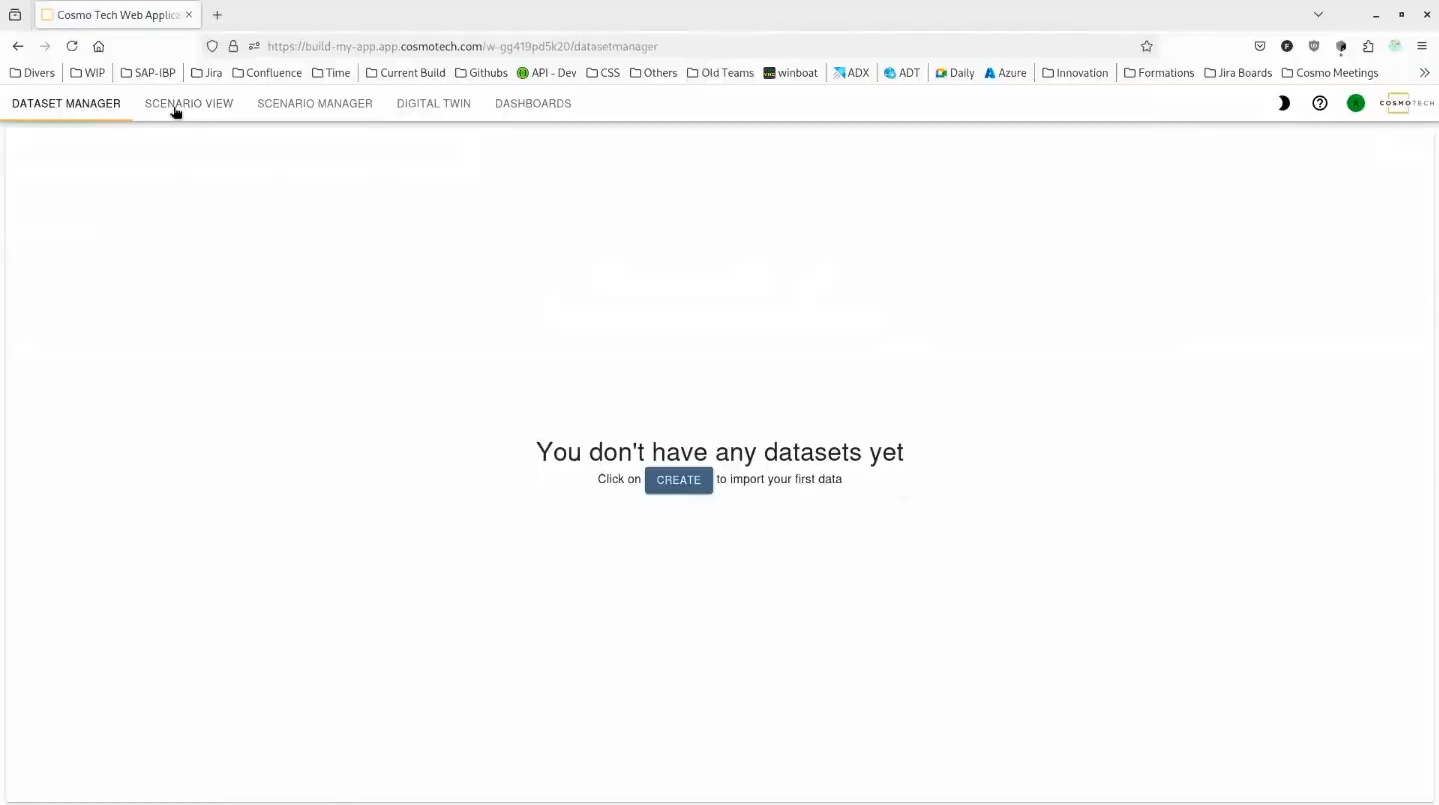

No Dataset

Step 2: Enter dataset information¶

Click the Create Dataset button and provide the basic information:

Name: a descriptive name for your dataset.
Description: optional details about the dataset contents.
Tags: optional labels for organization.

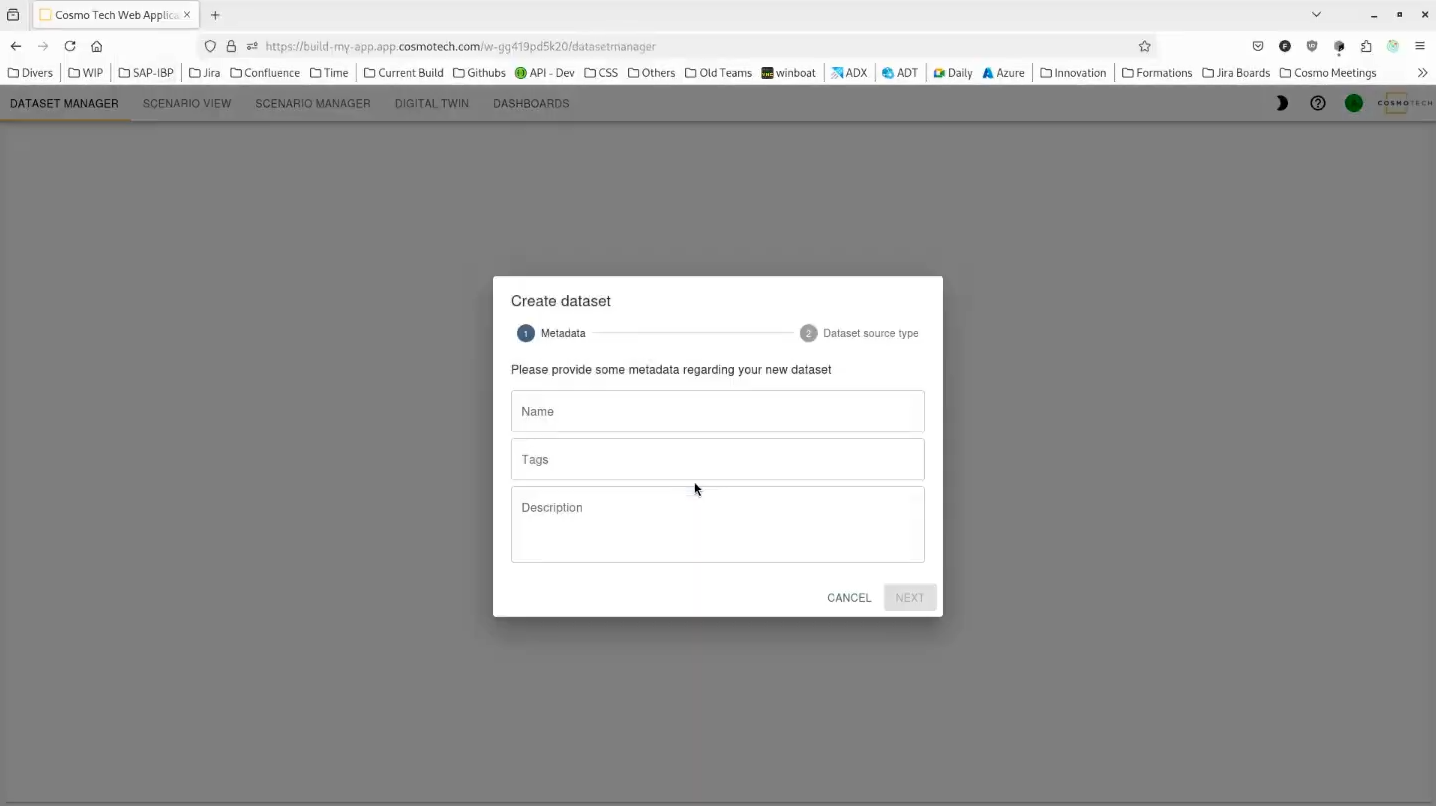

Creating Dataset - Basic Information

Step 3: Configure data source¶

Select your data source type and configure the connection parameters:

Source type: choose from available connectors (ADT, Azure Storage, Local File, etc.).
Connection parameters: provide authentication and location details.
Data mapping: configure how data should be imported.

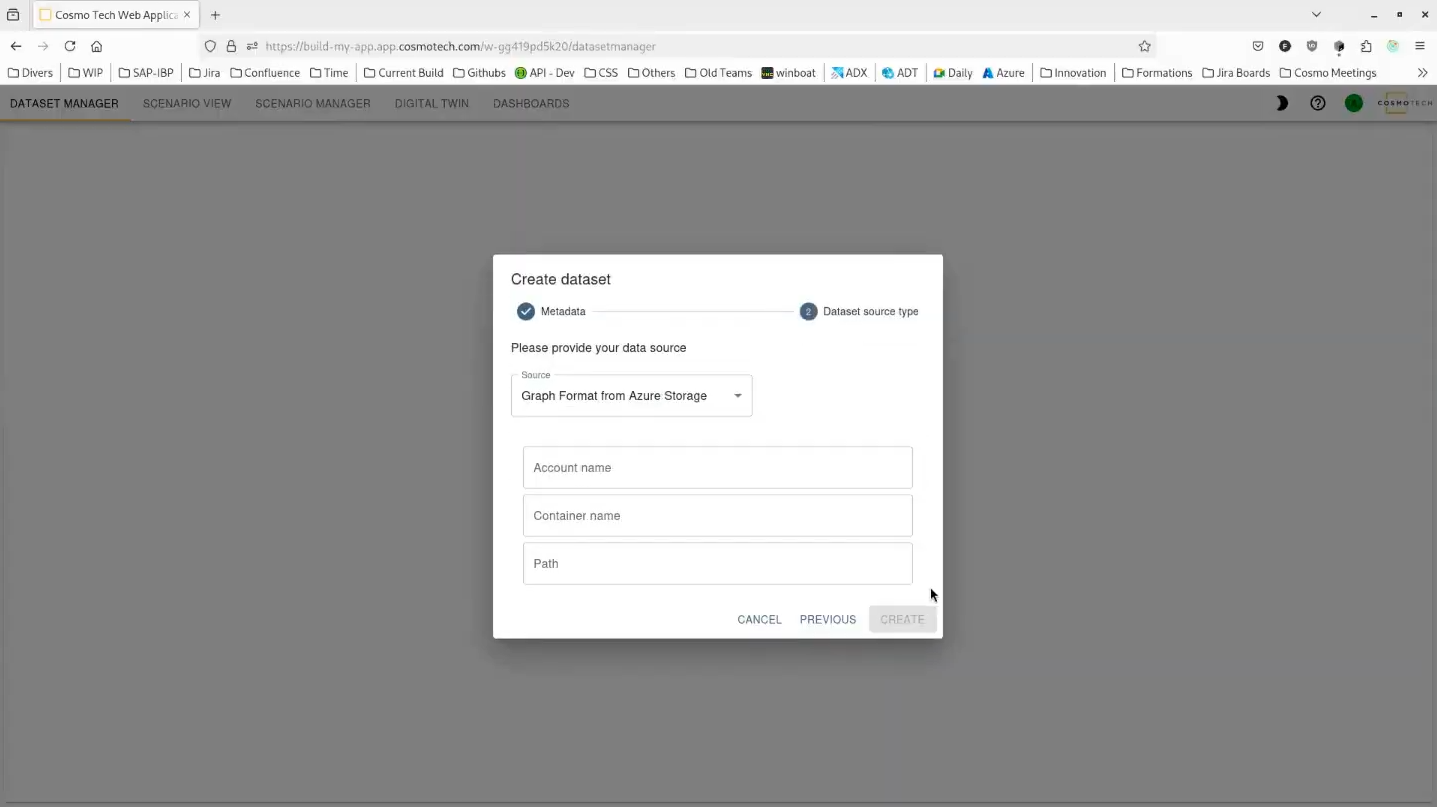

Creating Dataset - Source Configuration

Step 4: Dataset import¶

The web application will begin importing your data. Depending on the data size, this may take a few moments.

Dataset Created Successfully

Once the import is complete, your dataset will be ready to use in scenarios.

Creating a scenario¶

Scenarios define the simulation parameters and execution settings. Each scenario is linked to a dataset and a run template.

Step 1: Navigate to the Scenario view¶

When you first access a workspace with no scenarios, you'll see an empty scenario view.

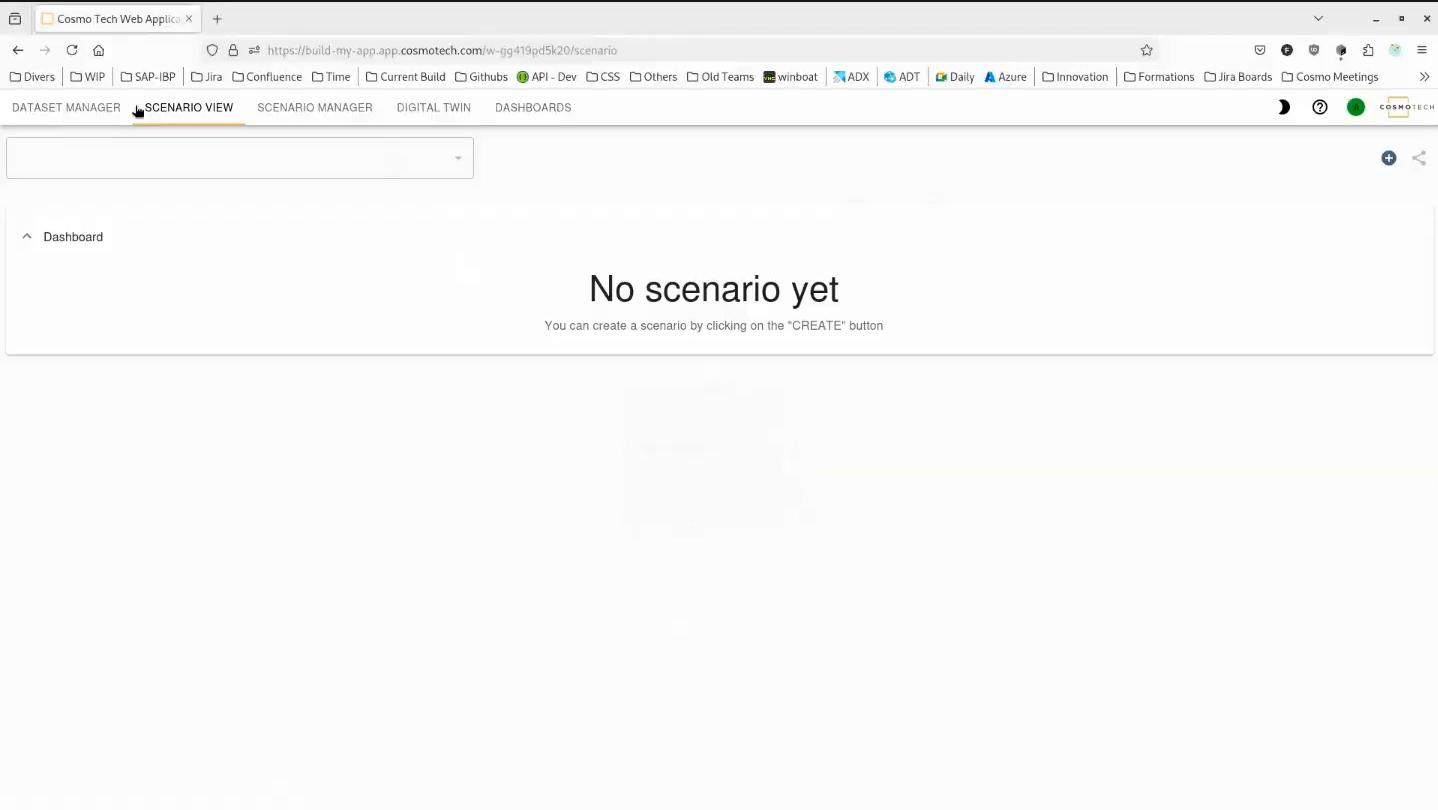

No Scenario

Step 2: Configure scenario details¶

Click the Create Scenario button and provide the configuration:

Name: a descriptive name for your scenario.
Description: optional details about what this scenario simulates.
Run Template: select the type of simulation to execute.
Dataset: choose the dataset created in the previous steps.
Parameters: configure scenario-specific parameters based on the selected run template.

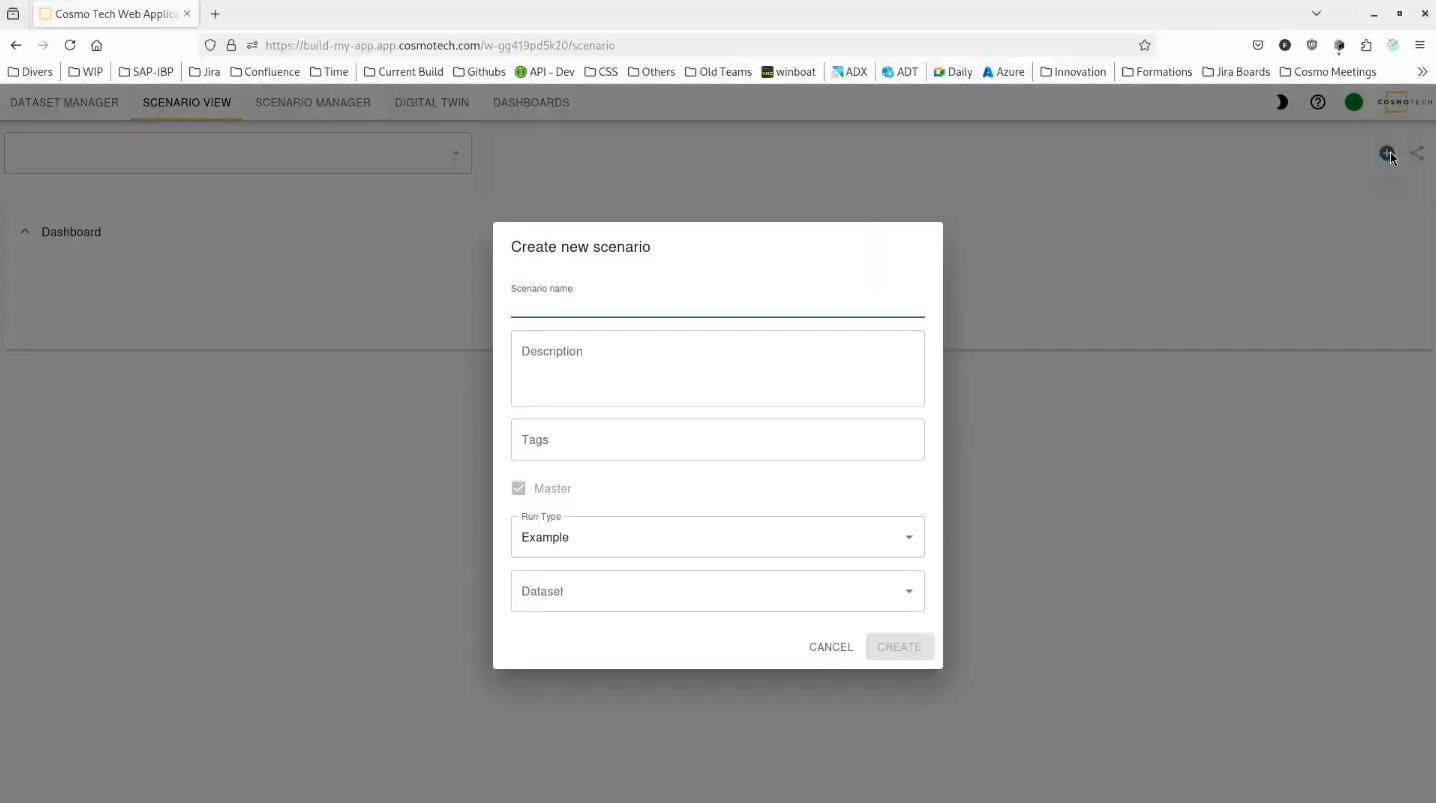

Create Scenario

Step 3: Scenario created¶

Once created, your scenario is ready to run. You can modify parameters or execute the simulation.

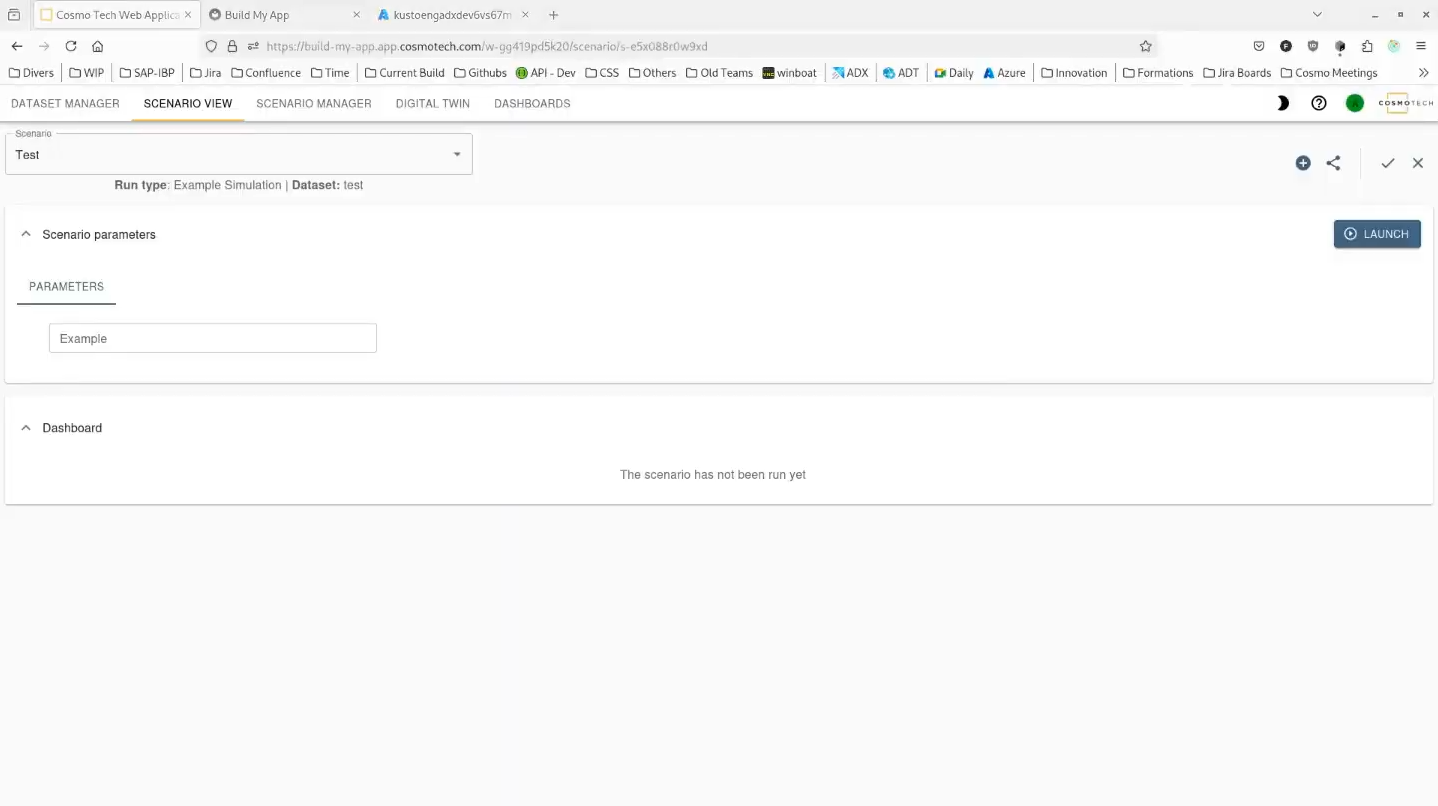

Created Scenario

Running a scenario¶

Execute the simulation¶

Click the Run button to start the simulation. The scenario will be submitted to the execution queue.

Monitor progress¶

The web application displays the execution status in real-time:

Pending: waiting for resources.
Running: simulation in progress.
Successful: completed successfully.
Failed: execution encountered an error.

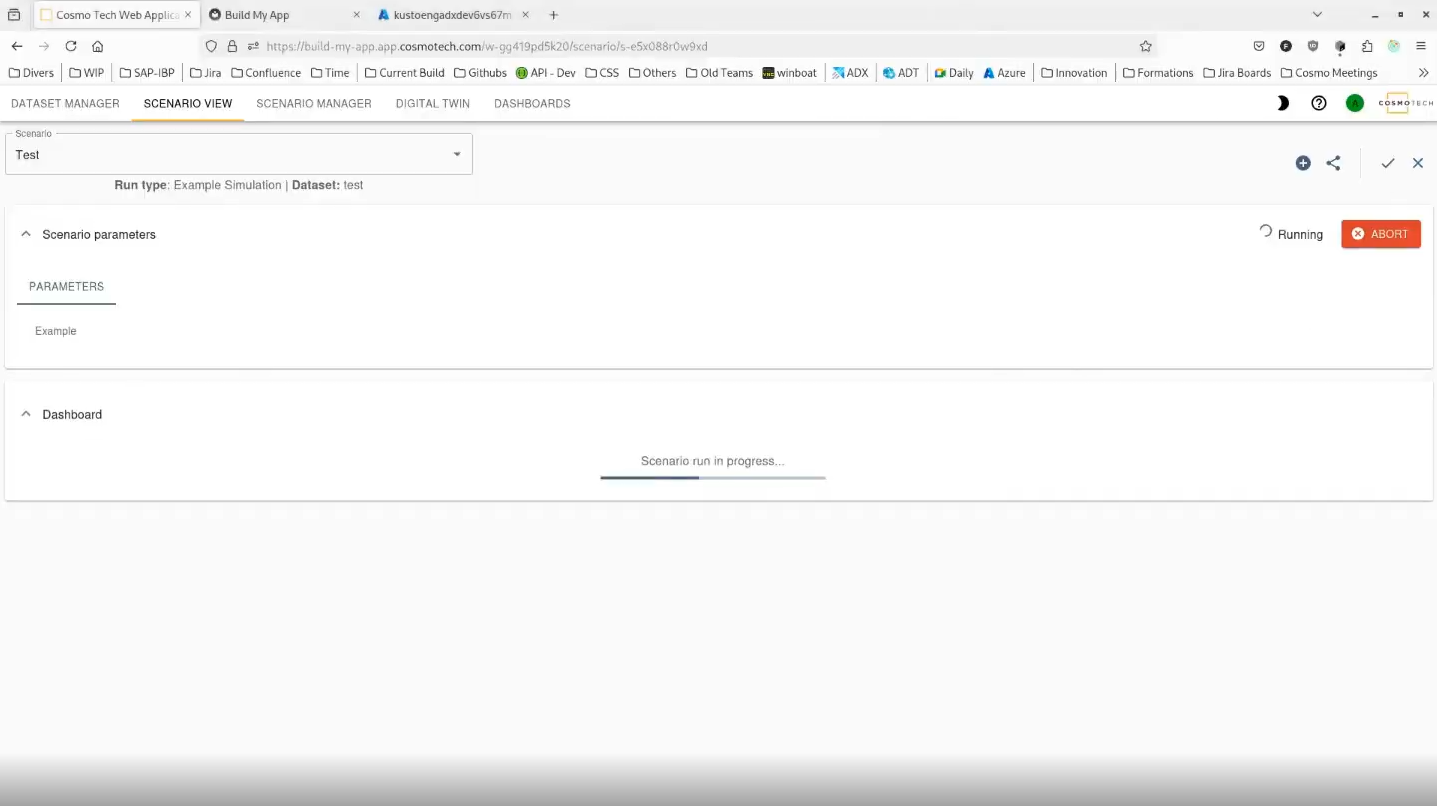

Running Scenario

View results¶

Once the scenario has finished running successfully, you can:

View results in the Dashboards tab (Power BI reports).
Analyze data directly in Azure Data Explorer.
Compare results with other scenarios.
Export data for further analysis.

The simulation output data is automatically sent to Event Hub, ingested into ADX, and made available for visualization in Power BI dashboards.

Next steps¶

After running your first scenario:

Explore Results: navigate to the Dashboards tab to view Power BI reports
Create Variations: clone your scenario and adjust parameters to explore different outcomes
Compare Scenarios: use comparison features to analyze differences
Query Raw Data: access ADX directly for custom data analysis
Share Insights: export reports and share findings with your team

Tips and Best Practices¶

Naming Conventions: use clear, descriptive names for datasets and scenarios.
Dataset Reuse: multiple scenarios can share the same dataset.
Parameter Documentation: add descriptions to help others understand your scenario configuration.
Version Control: create scenario clones before making significant changes.
Monitor Resources: check execution status and logs if a scenario fails.
Validate Data: ensure datasets are correctly imported before running scenarios.

Troubleshooting¶

Dataset Import Issues¶

Verify connection parameters and authentication.
Check data source accessibility.
Review error messages in the dataset details.

Scenario Execution Failures¶

Confirm the dataset is valid and complete.
Check parameter values are within acceptable ranges.
Review execution logs for error details.
Verify the Docker image is available in the registry.

Dashboard Not Loading¶

Ensure the scenario has completed successfully.
Verify Power BI workspace permissions.
Check that ADX contains the expected data.
Refresh the dashboard view.

References¶

For more detailed information on the front-end, please refer to:
